CSS FLEX Vs GRID: A Comparison

CSS Grid and Flexbox both provide ways to control the size and position of elements within a container, but they differ in their approach and the types of layouts they are best suited for. By comparing CSS Grid and Flexbox, we would gain a deeper understanding of each system and make informed decisions about which to use for specific projects based on the needs and requirements of the project.

The purpose of comparing CSS Grid and Flexbox is to understand the differences between these two layout systems and to determine the best use case for each.

CSS GRID

CSS Grid is a two-dimensional layout system for the web that allows elements within a container to be positioned and sized based on a grid of rows and columns. It provides a way to create complex and dynamic layouts with ease, making it an efficient tool for web design and development.

With CSS Grid, we can define the structure of a grid by specifying the number of rows and columns and then place elements within the grid by assigning them to specific rows and columns. This makes it possible to create layouts that are flexible and responsive, adapting to different screen sizes and devices.

CSS Grid also provides several features and tools for controlling the size and position of elements within the grid, such as grid templates, grid areas, and grid auto-placement. These features make it easy to create complex and dynamic layouts and provide a high level of control over the layout of a page.

Structure Of Grid

The structure of a CSS Grid layout is defined by the following components:

• Container: The container is a parent element that holds the grid and its elements. The container is defined using the "display: grid" property.

• Rows and Columns: The rows and columns define the structure of the grid. The number of rows and columns can be defined using the "grid-template-rows" and "grid-template-columns" properties.

• Grid Cells: The grid cells are the individual units within the grid that hold the content. The size and position of the grid cells are defined by assigning elements to specific rows and columns.

• Grid Tracks: The grid tracks are the horizontal and vertical lines that define the rows and columns of the grid. The size of the grid tracks can be defined using the "grid-template-rows" and "grid-template-columns" properties.

• Grid Lines: The grid lines are the lines that define the edges of the grid cells. The position of elements within the grid can be defined using the "grid-row" and "grid-column" properties.

• Grid Areas: The grid areas are defined sections within the grid that can be used to group elements together. The grid areas can be defined using the "grid-template-areas" property.

Advantages of CSS grid

Let's see some advantages of CSS grid:

• Two-dimensional layout: CSS Grid provides a two-dimensional layout system, which makes it possible to create complex and dynamic layouts with ease.

• Flexibility: CSS Grid is highly flexible, making it easy to create layouts that are responsive and adapt to different screen sizes and devices.

• Control over size and position: CSS Grid provides a high level of control over the size and position of elements within the grid, making it easy to create complex and dynamic layouts.

• Grid templates: CSS Grid provides grid templates, which make it possible to define the grid's structure and control the grid tracks' size.

• Grid areas: CSS Grid provides grid areas, which make it possible to group elements and create complex layouts.

• Grid auto-placement: CSS Grid provides grid auto-placement, which makes it possible to automatically place elements within the grid based on their size and position.

Disadvantages of CSS grid

Whatever has an advantage must have a disadvantage. Let's take a look at some setbacks of the CSS grid:

• Complexity: CSS Grid can be complex to learn and understand, especially for developers who are new to using grid systems.

• Browser support: Although CSS Grid is supported by modern browsers, there may still be some older browsers that do not support it, which can cause compatibility issues.

• Limited control over vertical alignment: While CSS Grid provides a high level of control over the size and position of elements within the container, it can be difficult to achieve precise vertical alignment of elements.

• Lack of native fallback: If a user's browser does not support CSS Grid, there is no native fallback mechanism in place, which can result in a broken layout.

• Over-engineering: CSS Grid is a powerful layout system, but it can be tempting to over-engineer the layout and make it more complex than it needs to be.

How to create a grid in CSS

HTML code that creates a grid-container div and 4 child div elements with classes item1, item2, item3, and item4.

<div class="grid-container">
  <div class="item1">1</div>
  <div class="item2">2</div>
  <div class="item3">3</div>
  <div class="item4">4</div>
</div>

CSS code sets up the grid-container div as a grid container with 2 columns and 2 rows, each taking up 1 fractional unit of the available space. It also adds a gap of 10 pixels between each grid item.

.grid-container {
  display: grid;
  /* set the display property to the grid so it becomes a grid container */
  grid-template-columns: repeat(2, 1fr);
  /* set the number of columns to 2 and each column will take up 1 fractional unit of the available space */
  grid-template-rows: repeat(2, 1fr);
  /* set the number of rows to 2 and each row will take up 1 fractional unit of the available space */
  grid-gap: 10px;
  /* add a gap of 10 pixels between each grid item */
}

Set the item1 div to occupy the grid container's first column and first row.

.item1 {
  grid-column: 1 / 2;
  grid-row: 1 / 2;
}

Set the item2 div to occupy the grid container's second column and first row.

.item2 {
  grid-column: 2 / 3;
  grid-row: 1 / 2;
}

Set the item3 div to occupy the grid container's first column and second row.

.item3 {
  grid-column: 1 / 2;
  grid-row: 2 / 3;
}

Set the item4 div to occupy the grid container's second column and second row.

.item4 {
  grid-column: 2 / 3;
  grid-row: 2 / 3;
}

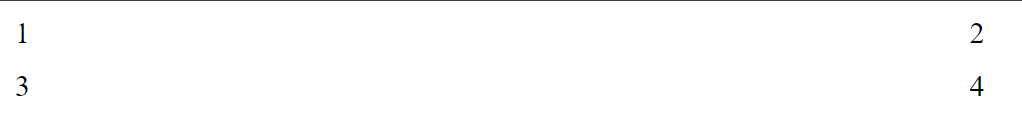

Here’s a pictorial view of the result:

CSS FLEXBOX

Flexbox, also known as Flexible Box Layout, is a one-dimensional layout system for the web that allows elements within a container to be laid out and aligned in a flexible and dynamic manner. It provides a way to create simple and flexible layouts, making it an efficient tool for web design and development.

With Flexbox, we can control the size, position, and alignment of elements within a container by defining the direction of the layout and the way that elements should grow or shrink. This makes it possible to create layouts that are flexible and responsive, adapting to different screen sizes and devices.

Flexbox also provides several features and tools for controlling the size and position of elements within the container, such as flex-direction, flex-wrap, and align-items. These features make it easy to create simple and flexible layouts and provide a high level of control over the layout of a page.

Structure of CSS Flexbox

The structure of a Flexbox layout is defined by the following components:

• Container: The container is a parent element that holds the flex items and defines the flex layout. The container is defined using the "display: flex" property.

• Flex Items: The flex items are the individual elements within the container that are laid out and aligned according to the flex layout.

• Flex Direction: The flex-direction defines the direction of the flex layout, either horizontally (row) or vertically (column). This is defined using the "flex-direction" property.

• Flex Wrap: The flex wrap defines how the flex items should wrap when they reach the end of the container. This is defined using the "flex-wrap" property.

• Align Items: The align-items property defines how the flex items should be aligned along the cross-axis of the container. This is defined using the "align-items" property.

• Justify Content: The justify-content property defines how the flex items should be aligned along the main axis of the container. This is defined using the "justify-content" property.

• Flex Basis: The flex-basis property defines the default size of a flex item along the main axis of the container. This is defined using the "flex-basis" property.

Advantages of Flexbox

Let’s have a look at some advantages of Flexbox:

• One-dimensional layout: Flexbox provides a one-dimensional layout system, making creating simple and flexible layouts easier.

• Flexibility: Flexbox is highly flexible, making it easy to create layouts that are responsive and adapt to different screen sizes and devices.

• Control over size and position: Flexbox provides a high level of control over the size and position of elements within the container, making it possible to create simple and flexible layouts with ease.

• Easy alignment: Flexbox provides tools for aligning elements within the container, making it easy to create layouts with consistent and aligned elements.

Disadvantages of Flexbox

Looking at the advantages, let's have a look at the limitations of Flexbox:

• Lack of two-dimensional layout: Flexbox provides a one-dimensional layout system, which can make it difficult to create complex and multi-dimensional layouts.

• Limited control over element sizing: While Flexbox provides easy alignment tools, it can be difficult to control the size of elements within the container, especially when dealing with equal-height elements.

• Browser support: Although Flexbox is widely supported by modern browsers, there may still be some older browsers that do not support it, which can cause compatibility issues.

• Inconsistent behavior across browsers: Flexbox can have inconsistent behavior across different browsers, which can make it difficult to achieve a consistent layout across all devices.

• Complexity: While Flexbox is generally considered to be easier to understand and use compared to CSS Grid, it can still be complex for developers who are new to using flexbox systems.

How to create a Flexbox in CSS:

HTML code that creates a flex-container div and 4 child div elements with classes item1, item2, item3, and item4

<div class="flex-container">
  <div class="item1">1</div>
  <div class="item2">2</div>
  <div class="item3">3</div>
  <div class="item4">4</div>
</div>

CSS code sets up the flex-container div as a flex container, with flex-wrap: wrap to allow items to wrap to the next line if the container is too narrow, and justify-content: space-between to distribute the items along the main axis of the container with equal space between the items.

.flex-container {
  display: flex;
  /* set the display property to flex so it becomes a flex container */
  flex-wrap: wrap;
  /* allow the items to wrap to the next line if the container is too narrow */
  justify-content: space-between;
  /* distribute the items along the main axis of the container, with equal space between the items */
}

Set the width of each of the 4 child div elements with classes item1, item2, item3, and item4 to 30% and add a margin of 10 pixels at the bottom of each item.

.item1,.item2,.item3,.item4 {
  width: 30%;
  /* set the width of each item to 30% */
  margin-bottom: 10px;
  /* add a margin of 10 pixels at the bottom of each item */
}

Here’s a pictorial view of the result

COMPARISON BETWEEN FLEXBOX AND GRID

CSS Grid and Flexbox are two popular layout systems used in web design to arrange and align elements on a page. They both provide a way to create flexible and responsive designs, but they have some key differences that make them better suited for different types of projects. Some of these differences are highlighted below.

S/N	CSS GRID	CSS FLEXBOX
1	Grid provides a two-dimensional layout system.	Flexbox provides a one-dimensional layout system.
2	Grid provides a high level of flexibility however, Grid provides more control over the size and position of elements within the container	Flexbox provides a high level of flexibility and provides easier alignment tools
3	CSS Grid provides a high level of control over the size and position of elements within the container	Flexbox also provides control over the size and position of elements, but it is more limited than Grid
4	CSS Grid are supported by modern browsers, including Chrome, Firefox, Safari, and Edge	Flexbox are supported by modern browsers, including Chrome, Firefox, Safari, and Edge

CONCLUSION

In conclusion, both CSS Grid and Flexbox have their unique strengths and weaknesses, and the choice between them will depend on the specific needs and requirements of the project. Flexbox is a good choice for simple and flexible layouts, while CSS Grid is the better option for complex and multi-dimensional layouts.
